Hydraulic Model Fiber cable blowing machine

Hydraulic Model Fiber cable blowing machine
Hydraulic Model Fiber cable blowing machine
Product Code : GOWIN 1025
Brand Name : GOWIN
Product Description

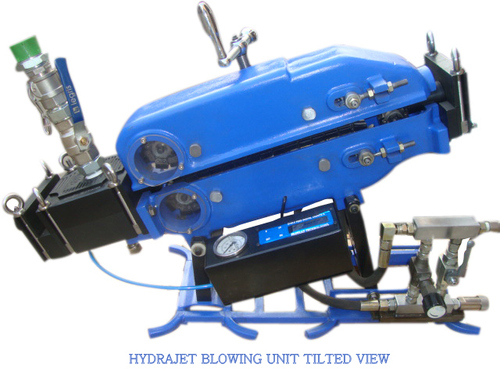

GOWIN HYDRAULIC MODEL FIBER CABLE



BLOWING MACHINE GOWIN 1025



Gowin 1025 hydraulic model cable blowing machine our new series



for the installation of heavy and medium fiber cables armored and



unarmored from 8 mm core diameter upto 25 mm core dia into under



ground laid plb ducts diameter from 25 mm upto 50 mm extendable 62



mm also by hydraulic power supported by power pack fitted with



HONDA GX 270 portable petrol engine . Jetting unit made of aluminium



alloy casting body with sturdy design can install the fiber cable at speed



80 + meters per minute . Air compressor from 350 to 400 cfm high stream



air vented through plb ducts easily floats the fiber cable inside the ducts



pushes the cable at target distance .  Cable speed and length blown can be



read with digital counter panel box.



 HYDRAJET JETTING UNIT SPECIFICATION  HYDRAULIC POWER PACK  SPECIFICATION
 TYPE  HYDRAULIC DRIVE  TYPE OF ENGINE  HONDA PETROL GX270
 CABLE DIAMETER  08MM TO 25 MM  ENGINE MAX POWER K 6.5 KW
 DUCT O/D DIAMETER 25 MM TO 63 MM  ENGINE MAX RPM 3600
 PUSHING FORCE (N) 0-680 HYDRA PUMP DELIVERY RATING LPM 20
 LINEAR PRESSURE ON CABLE N/CM 93 HYDRAULIC PRESSURE DELIVERY KG/CM2  100 TO 150
 MAXIMUM SPEED METERS /MINUTE  70 METERS
 RECOMENDED SPEED PER MINUTE  55 TO 65
 MAXIMUM AIR PRESSURE / BAR 12 GENERAL SPECIFICATIONS
 MAXIMUM WATER PRESSUER/ BAR 25 HYDRAULIC POWER PACK DIMENSIONS MM 800*660*880 (L*W*H)
 MACHINE POSITIONING 0 TO 45 DEGREES  WEIGHT IN KG 80
 CABLE LENGTH MEASURE  DIGITAL READING JETTING UNIT DIMENSIONS  1050*350*700 MM L*W*H
 CABLE SPEED MEASURE DIGITAL READING  WEIGHT IN KG  60
 AIR CONNECTIONS  40 MM CAM LOCK COUPLERS  OPERATING TEMPREATURE  -10 TO +65 DEGREES
 JETTING UNIT  DIE CAST ALUMINIUM  NOISE LEVEL  75 DECIBELS
